Sonoscape L741 Ultrasound Linear Array Probe
for SSI-8000, SSI-6000, SSI-5000, and S8 series ultrasound systems
► Brief Introduction of Sonoscape L741 Ultrasound Linear Array Probe for SSI-8000, SSI-6000, SSI-5000, and S8 series ultrasound systems
The Sonoscape L741 Ultrasound Linear Array Probe is designed for use with the S6 Color Doppler Ultrasound System. It has 128 transducer elements and a frequency range of 5.0 - 12.0 MHz. It is commonly used for vascular, small parts, and musculoskeletal applications
► Features of Sonoscape L741 Ultrasound Linear Array Probe for SSI-8000, SSI-6000, SSI-5000, and S8 series ultrasound systems
Signal processing technology: Improves image clarity and resolution.
Ergonomic design: Reduces operator fatigue over long periods of time.
Easy to clean and disinfect: Maintains high hygiene standards.
Safety-friendly: Minimizes exposure to ultrasound radiation.
Wide compatibility: Seamlessly integrates with SonoScape’s wide range of ultrasound systems.
Frequency flexibility: Adjust settings to suit your inspection needs.
► Specification of Sonoscape L741 Ultrasound Linear Array Probe for SSI-8000, SSI-6000, SSI-5000, and S8 series ultrasound systems
| Product Name | Sonoscape L741 Ultrasound Linear Array Probe for E Series Ultrasounds |
| Brand | Sonoscape |
| Model Number | L741 |
| Compatible with | Sonoscape SSI-8000, SSI-6000, SSI-5000, and S8 series ultrasound systems |
| MOQ | One piece |
| Warranty | 90 days |
| Type | Linear array |
| Applications | Vascular, Small parts, Musculoskeletal |
| Scan width | max. 46mm |
| Frequency range | 5.0 - 12.0 MHz |
► Connecting probes
It is not necessary to turn off the system to connect or disconnect the probe.
Before connecting or disconnecting the probe, ensure that it is not actively scanning. You must do one of the following:
• Activate Stop mode with the Freeze key.
• Activate Ready mode with the MENU key.
If the probe is disconnected during an active scan, a software error may occur. In this case, restart the system.
How to Use

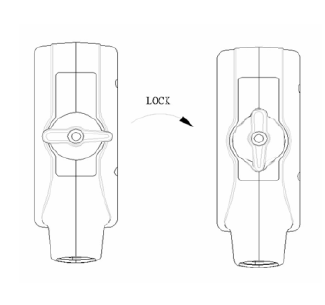

1. Insert the probe connector directly into the probe socket on the ultrasound system.
2. Turn the knob clockwise to lock the connector.
3. The excess cable can be hung on the hook on the ultrasound system.
Thank you so much for your attention .If you're interested in Sonoscape L741 Ultrasound Linear Array Probe For SSI-8000, SSI-6000, SSI-
5000, And S8 Series Ultrasound Systems ,feel free to contact us .Thank you .
|
|
