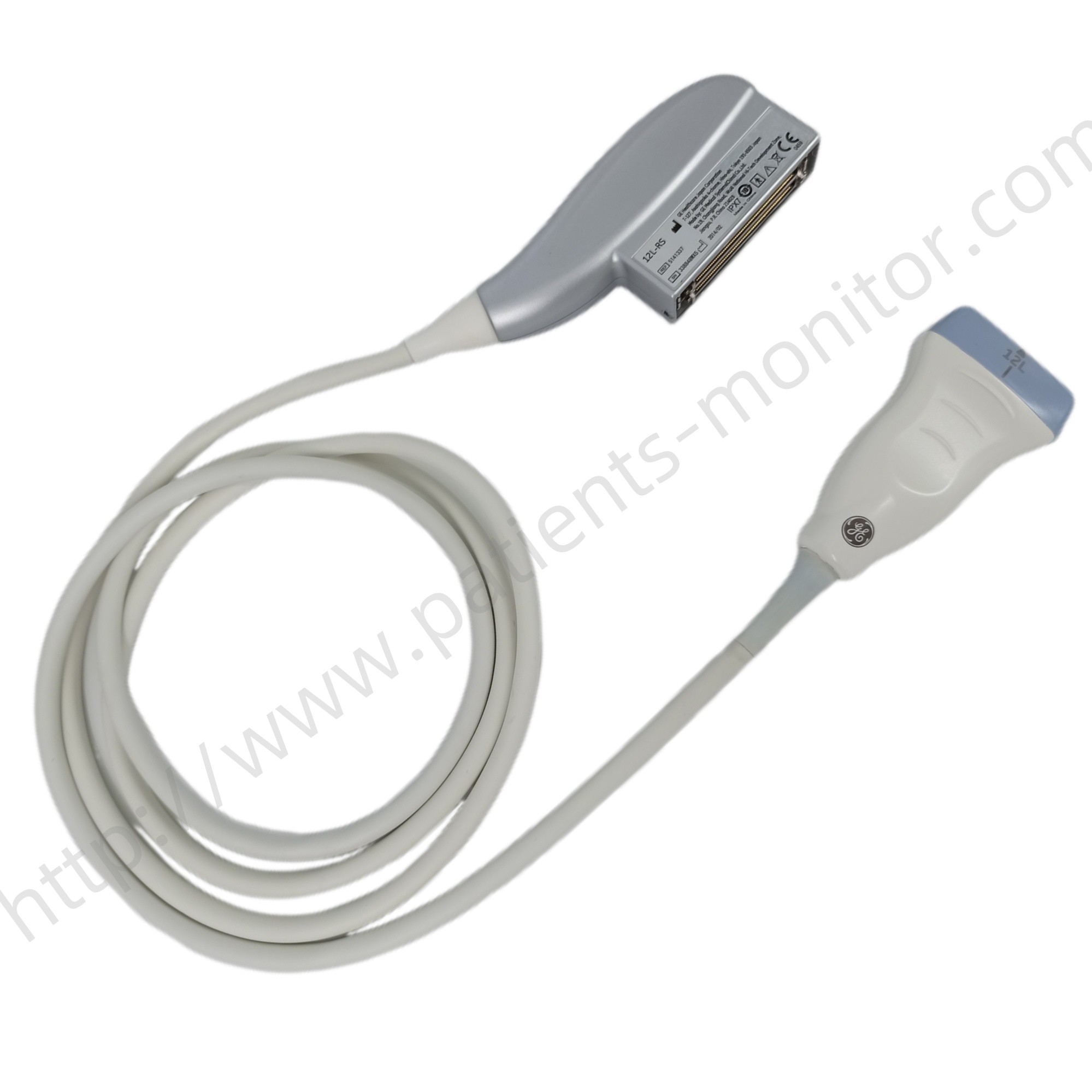

GE 12L-RS Linear Array Probe Transducer for Logiq Voluson Vivid Series Ultrasound Machine System 5.0-13.0 MHz
Description
The GE 12L-RS is a linear ergonomic ultrasound transducer probe, the frequency range is 5-13 MHz. It is compatible with GE Logiq, Voluson and Vivid Series Ultrasound System, can be used in various applications, including orthopedic, vascular, pediatric, neonatal, nerve block, needle guidance, peripheral and more. It is capable of 2D, SRI, color doppler, PW doppler, and harmonics imaging modes providing adaptability for most ultrasound needs.
Specification:
1. Model: 12L-RS
2. Type: Linear Array
3. Frequency: 5.0 - 13.0 MHz
4. Compatible: Logiq e/ Logiq l/ Vivid e/Vivid I/ Voluson e/Voluson I/Vivid Q/Vivid S5/ Vivid S6
5. Application: Orthopedic, vascular, small parts, musculoskeletal, nerve block, neonatal, peripheral, pediatric and veterinary
The multi-frequency probe is a new development of the pulse echo transducer. The probe can emit several different ultrasonic pulses, so that high-frequency ultrasound covers the near field, medium-frequency ultrasound covers the transition zone between the near and far fields, and low-frequency ultrasound covers the far field. The unit multi-frequency probe is to bond multiple layers of piezoelectric ceramics (or polymer piezoelectric materials) to each other, lead wires to the electrodes between the layers, and obtain ultrasonic pulse emission of multiple frequencies by exciting different layers. The digital coding of the multi-frequency probe is simple, but it is easy to lose signals.
| Brand | GE |
| Application | Logiq Voluson Vivid Series Ultrasound |
| Model | 12L-RS |
| Condition | Good |
| Warranty | 90 days |
| Material | Plastic |
| Type | Linear Array |
| Frequency | 5.0-13.0 MHz |
| Payment | T/T, Western Union, PayPal |
| Delivery | 3-5 days |
Warranty
Warranty period: 90 days
We provide warranty for both new and used equipment. Different equipment has different warranty periods. You can contact us to check the warranty details.
Delivery Details
Express delivery method: DHL, FedEx, UPS, etc.
Once payment is completed, we will immediately deliver the product to you quickly and safely. And the delivery date is about 3-5 working days, the shipping cost depends on your country and region.
If your delivery date is longer than expected, or you want to know the shipping details, you can contact us at any time.
Quality
Whether it is new equipment or old equipment, our engineers will conduct a comprehensive inspection before arranging delivery, and we have a 3 month warranty period, so you can purchase with confidence.
Warning
1. It's must use the correct electrical outlet to avoid damage or malfunction.
2. Try to avoid long-term storage, especially in high temperature and high humidity environments.
3. Do not use high-temperature, high-pressure vapour or ionizing radiation as disinfection methods.
4. Do not use chloric disinfectant such as chloride, sodium hypochlorite etc.
5. Please keep it away from water and fire.
We also provide other medical equipment and accessories. If you have any other needs or any questions about this product, please feel free to contact us, we will reply you as soon as possible.
